R87減速機重量：R87減速機重量63Kg，R87減速機配電機重量分別如下：

R87減速機配0.55KW電機重量78Kg,R87減速機配0.75KW電機重量79Kg,R87減速機配1.1KW電機重量83Kg,R87減速機配1.5KW電機重量86Kg,R87減速機配2.2KW電機重量95Kg,R87減速機配3KW電機重量98Kg,R87減速機配4KW電機重量109Kg,R87減速機配5.5KW電機重量123Kg,R87減速機配7.5KW電機重量136Kg,R87減速機配11KW電機重量178Kg,R87減速機配15KW電機重量198Kg,R87減速機配18.5KW電機重量235Kg,R87減速機配22KW電機重量248Kg。

R87減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R87減速機M1安裝加2.3/6升，R87減速機M2安裝加6.4/8.1升，R87減速機M3安裝加7.2升，R87減速機M4安裝加7.2升，R87減速機M5安裝加6.3升，R87減速機M6安裝加6.5升。

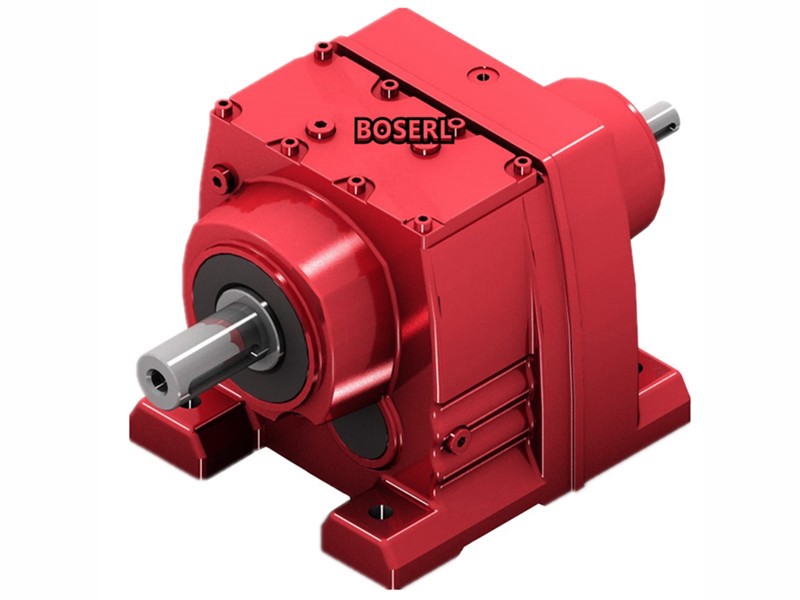

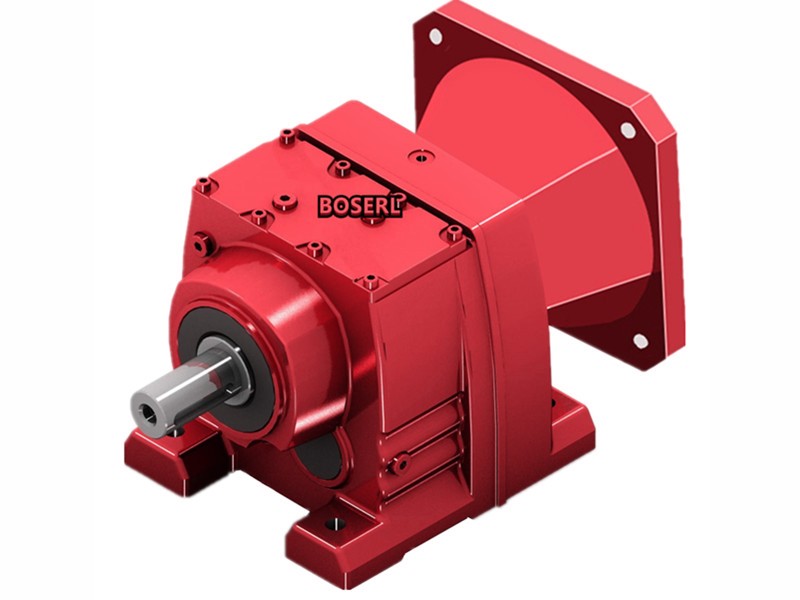

R87減速機實物圖：圖一為R87底腳安裝斜齒輪減速機，圖二RF87法蘭立式安裝斜齒輪減速機，圖三為RX87減速機不同心臥式底腳安裝，圖四為RXF87減速機不同心立式法蘭安裝。

R87減速機型號表示方法：

R87減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R87減速機型號結構R87-B22KW-4P-減速比-安裝方式-接線盒位置。

R87減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R87減速機結構圖：同軸減速機

R87減速機參數：R系列減速機

R87減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R87配0.55KW,R87配0.75KW,R87配1.1KW,R87配1.5KW,R87配2.2KW,R87配3KW,R87配4KW,R87配5.5KW,R87配7.5KW,R87配11KW,R87配15KW,R87配18.5KW,R87配22KW。

R87減速機減速比5.3比,6.39比,7.13比,8.22比,9.14比,9.9比,11.93比,13.33比,15.35比,17.08比,19.1比,21.51比,23.4比,27.84比,27.88比,31.4比,32.66比,34.4比,36.84比,41.74比,47.58比,52.82比,60.35比,63.68比,72.57比,81.92比,93.38比,103.65比,118.43比,124.97比,142.41比,155.34比,181.77比,205.71比,216.54比,246.54比。

R87減速機輸出轉速5.7轉,6.5轉,6.8轉,7.7轉,9轉,9.8轉,11轉,12轉,14轉,15轉,17轉,19轉,22轉,23轉,27轉,29轉,34轉,38轉,41轉,43轉,45轉,50轉,50轉,60轉,65轉,73轉,82轉,91轉,105轉,117轉,141轉,153轉,170轉,196轉,219轉,264。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R87減速機負載扭矩1550N.m,1440N.m,1390N.m,1340N.m,1280N.m,1230N.m,1180N.m,1210N.m,1160N.m,1070N.m,1020N.m,910N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

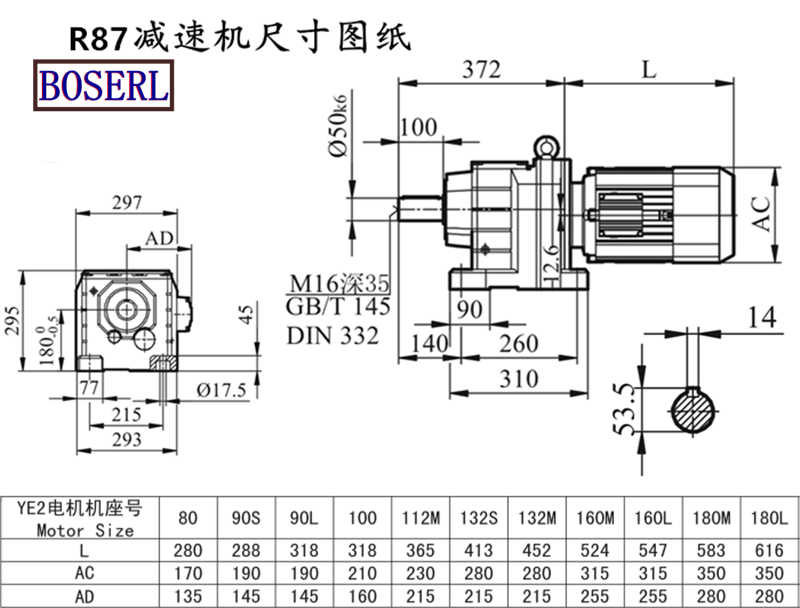

R87減速機尺寸圖紙：高295*寬293*長372（帶輸出軸）齒輪減速機

R87減速機型號:

R87AQA80,R87AQA100,R87AQA115,R87AQA140,R87AQA160,R87AQA190,R87AQH80,R87AQH100,R87AQH115,R87AQH140,R87AQH160,R87AQH190,JRTR87-Y0.37KW,JRTR87-Y0.55KW,JRTR87-Y0.75KW,JRTR87-Y1.1KW,JRTR87-Y1.5KW,JRTR87-Y100M4,JRTR87-Y112M4,JRTR87-Y11KW,JRTR87-Y132M4,JRTR87-Y15KW,JRTR87-Y160M4,JRTR87-Y18.5KW,JRTR87-Y180M4,JRTR87-Y2.2KW,JRTR87-Y200M4,JRTR87-Y22KW,JRTR87-Y30KW,JRTR87-Y3KW,JRTR87-Y4KW,JRTR87-Y5.5KW,JRTR87-Y7.5KW,JRTR87-Y71M4,JRTR87-Y80M4,JRTR87-Y90M4,JRTR87-YEJ100M4,JRTR87-YEJ112M4,JRTR87-YEJ132M4,JRTR87-YEJ160M4,JRTR87-YEJ180M4,JRTR87-YEJ200M4,JRTR87-YEJ71M4,JRTR87-YEJ80M4,JRTR87-YEJ90M4,JRTR87-YS100M4,JRTR87-YS112M4,JRTR87-YS132M4,JRTR87-YS160M4,JRTR87-YS180M4,JRTR87-YS200M4,JRTR87-YS71M4,JRTR87-YS80M4,JRTR87-YS90M4,JRTR87-YVP100M4,JRTR87-YVP112M4,JRTR87-YVP132M4,JRTR87-YVP160M4,JRTR87-YVP180M4,JRTR87-YVP200M4,JRTR87-YVP71M4,JRTR87-YVP80M4,JRTR87-YVP90M4,JRTR87-YVPEJ100M4,JRTR87-YVPEJ112M4,JRTR87-YVPEJ132M4,JRTR87-YVPEJ160M4,JRTR87-YVPEJ180M4,JRTR87-YVPEJ200M4,JRTR87-YVPEJ71M4,JRTR87-YVPEJ80M4,JRTR87-YVPEJ90M4,EWR87-Y0.37KW,EWR87-Y0.55KW,EWR87-Y0.75KW,EWR87-Y1.1KW,EWR87-Y1.5KW,EWR87-Y100M4,EWR87-Y112M4,EWR87-Y11KW,EWR87-Y132M4,EWR87-Y15KW,EWR87-Y160M4,EWR87-Y18.5KW,EWR87-Y180M4,EWR87-Y2.2KW,EWR87-Y200M4,EWR87-Y22KW,EWR87-Y30KW,EWR87-Y3KW,EWR87-Y4KW,EWR87-Y5.5KW,EWR87-Y7.5KW,EWR87-Y71M4,EWR87-Y80M4,EWR87-Y90M4,EWR87-YEJ100M4,EWR87-YEJ112M4,EWR87-YEJ132M4,EWR87-YEJ160M4,EWR87-YEJ180M4,EWR87-YEJ200M4,EWR87-YEJ71M4,EWR87-YEJ80M4,EWR87-YEJ90M4,EWR87-YS100M4,EWR87-YS112M4,EWR87-YS132M4,EWR87-YS160M4,EWR87-YS180M4,EWR87-YS200M4,EWR87-YS71M4,EWR87-YS80M4,EWR87-YS90M4,EWR87-YVP100M4,EWR87-YVP112M4,EWR87-YVP132M4,EWR87-YVP160M4,EWR87-YVP180M4,EWR87-YVP200M4,EWR87-YVP71M4,EWR87-YVP80M4,EWR87-YVP90M4,EWR87-YVPEJ100M4,EWR87-YVPEJ112M4,EWR87-YVPEJ132M4,EWR87-YVPEJ160M4,EWR87-YVPEJ180M4,EWR87-YVPEJ200M4,EWR87-YVPEJ71M4,EWR87-YVPEJ80M4,EWR87-YVPEJ90M4,SLR87-Y0.37KW,SLR87-Y0.55KW,SLR87-Y0.75KW,SLR87-Y1.1KW,SLR87-Y1.5KW,SLR87-Y100M4,SLR87-Y112M4,SLR87-Y11KW,SLR87-Y132M4,SLR87-Y15KW,SLR87-Y160M4,SLR87-Y18.5KW,SLR87-Y180M4,SLR87-Y2.2KW,SLR87-Y200M4,SLR87-Y22KW,SLR87-Y30KW,SLR87-Y3KW,SLR87-Y4KW,SLR87-Y5.5KW,SLR87-Y7.5KW,SLR87-Y71M4,SLR87-Y80M4,SLR87-Y90M4,SLR87-YEJ100M4,SLR87-YEJ112M4,SLR87-YEJ132M4,SLR87-YEJ160M4,SLR87-YEJ180M4,SLR87-YEJ200M4,SLR87-YEJ71M4,SLR87-YEJ80M4,SLR87-YEJ90M4,SLR87-YS100M4,SLR87-YS112M4,SLR87-YS132M4,SLR87-YS160M4,SLR87-YS180M4,SLR87-YS200M4,SLR87-YS71M4,SLR87-YS80M4,SLR87-YS90M4,SLR87-YVP100M4,SLR87-YVP112M4,SLR87-YVP132M4,SLR87-YVP160M4,SLR87-YVP180M4,SLR87-YVP200M4,SLR87-YVP71M4,SLR87-YVP80M4,SLR87-YVP90M4,SLR87-YVPEJ100M4,SLR87-YVPEJ112M4,SLR87-YVPEJ132M4,SLR87-YVPEJ160M4,SLR87-YVPEJ180M4,SLR87-YVPEJ200M4,SLR87-YVPEJ71M4,SLR87-YVPEJ80M4,SLR87-YVPEJ90M4,DSZR87-Y0.37KW,DSZR87-Y0.55KW,DSZR87-Y0.75KW,DSZR87-Y1.1KW,DSZR87-Y1.5KW,DSZR87-Y100M4,DSZR87-Y112M4,DSZR87-Y11KW,DSZR87-Y132M4,DSZR87-Y15KW,DSZR87-Y160M4,DSZR87-Y18.5KW,DSZR87-Y180M4,DSZR87-Y2.2KW,DSZR87-Y200M4,DSZR87-Y22KW,DSZR87-Y30KW,DSZR87-Y3KW,DSZR87-Y4KW,DSZR87-Y5.5KW,DSZR87-Y7.5KW,DSZR87-Y71M4,DSZR87-Y80M4,DSZR87-Y90M4,DSZR87-YEJ100M4,DSZR87-YEJ112M4,DSZR87-YEJ132M4,DSZR87-YEJ160M4,DSZR87-YEJ180M4,DSZR87-YEJ200M4,DSZR87-YEJ71M4,DSZR87-YEJ80M4,DSZR87-YEJ90M4,DSZR87-YS100M4,DSZR87-YS112M4,DSZR87-YS132M4,DSZR87-YS160M4,DSZR87-YS180M4,DSZR87-YS200M4,DSZR87-YS71M4,DSZR87-YS80M4,DSZR87-YS90M4,DSZR87-YVP100M4,DSZR87-YVP112M4,DSZR87-YVP132M4,DSZR87-YVP160M4,DSZR87-YVP180M4,DSZR87-YVP200M4,DSZR87-YVP71M4,DSZR87-YVP80M4,DSZR87-YVP90M4,DSZR87-YVPEJ100M4,DSZR87-YVPEJ112M4,DSZR87-YVPEJ132M4,DSZR87-YVPEJ160M4,DSZR87-YVPEJ180M4,DSZR87-YVPEJ200M4,DSZR87-YVPEJ71M4,DSZR87-YVPEJ80M4,DSZR87-YVPEJ90M4,BR87-Y0.37KW,BR87-Y0.55KW,BR87-Y0.75KW,BR87-Y1.1KW,BR87-Y1.5KW,BR87-Y100M4,BR87-Y112M4,BR87-Y11KW,BR87-Y132M4,BR87-Y15KW,BR87-Y160M4,BR87-Y18.5KW,BR87-Y180M4,BR87-Y2.2KW,BR87-Y200M4,BR87-Y22KW,BR87-Y30KW,BR87-Y3KW,BR87-Y4KW,BR87-Y5.5KW,BR87-Y7.5KW,BR87-Y71M4,BR87-Y80M4,BR87-Y90M4,BR87-YEJ100M4,BR87-YEJ112M4,BR87-YEJ132M4,BR87-YEJ160M4,BR87-YEJ180M4,BR87-YEJ200M4,BR87-YEJ71M4,BR87-YEJ80M4,BR87-YEJ90M4,BR87-YS100M4,BR87-YS112M4,BR87-YS132M4,BR87-YS160M4,BR87-YS180M4,BR87-YS200M4,BR87-YS71M4,BR87-YS80M4,BR87-YS90M4,BR87-YVP100M4,BR87-YVP112M4,BR87-YVP132M4,BR87-YVP160M4,BR87-YVP180M4,BR87-YVP200M4,BR87-YVP71M4,BR87-YVP80M4,BR87-YVP90M4,BR87-YVPEJ100M4,BR87-YVPEJ112M4,BR87-YVPEJ132M4,BR87-YVPEJ160M4,BR87-YVPEJ180M4,BR87-YVPEJ200M4,BR87-YVPEJ71M4,BR87-YVPEJ80M4,BR87-YVPEJ90M4,GR87-Y0.37KW,GR87-Y0.55KW,GR87-Y0.75KW,GR87-Y1.1KW,GR87-Y1.5KW,GR87-Y100M4,GR87-Y112M4,GR87-Y11KW,GR87-Y132M4,GR87-Y15KW,GR87-Y160M4,GR87-Y18.5KW,GR87-Y180M4,GR87-Y2.2KW,GR87-Y200M4,GR87-Y22KW,GR87-Y30KW,GR87-Y3KW,GR87-Y4KW,GR87-Y5.5KW,GR87-Y7.5KW,GR87-Y71M4,GR87-Y80M4,GR87-Y90M4,GR87-YEJ100M4,GR87-YEJ112M4,GR87-YEJ132M4,GR87-YEJ160M4,GR87-YEJ180M4,GR87-YEJ200M4,GR87-YEJ71M4,GR87-YEJ80M4,GR87-YEJ90M4,GR87-YS100M4,GR87-YS112M4,GR87-YS132M4,GR87-YS160M4,GR87-YS180M4,GR87-YS200M4,GR87-YS71M4,GR87-YS80M4,GR87-YS90M4,GR87-YVP100M4,GR87-YVP112M4,GR87-YVP132M4,GR87-YVP160M4,GR87-YVP180M4,GR87-YVP200M4,GR87-YVP71M4,GR87-YVP80M4,GR87-YVP90M4,GR87-YVPEJ100M4,GR87-YVPEJ112M4,GR87-YVPEJ132M4,GR87-YVPEJ160M4,GR87-YVPEJ180M4,GR87-YVPEJ200M4,GR87-YVPEJ71M4,GR87-YVPEJ80M4,GR87-YVPEJ90M4,RC87-Y0.37KW,RC87-Y0.55KW,RC87-Y0.75KW,RC87-Y1.1KW,RC87-Y1.5KW,RC87-Y100M4,RC87-Y112M4,RC87-Y11KW,RC87-Y132M4,RC87-Y15KW,RC87-Y160M4,RC87-Y18.5KW,RC87-Y180M4,RC87-Y2.2KW,RC87-Y200M4,RC87-Y22KW,RC87-Y30KW,RC87-Y3KW,RC87-Y4KW,RC87-Y5.5KW,RC87-Y7.5KW,RC87-Y71M4,RC87-Y80M4,RC87-Y90M4,RC87-YEJ100M4,RC87-YEJ112M4,RC87-YEJ132M4,RC87-YEJ160M4,RC87-YEJ180M4,RC87-YEJ200M4,RC87-YEJ71M4,RC87-YEJ80M4,RC87-YEJ90M4,RC87-YS100M4,RC87-YS112M4,RC87-YS132M4,RC87-YS160M4,RC87-YS180M4,RC87-YS200M4,RC87-YS71M4,RC87-YS80M4,RC87-YS90M4,RC87-YVP100M4,RC87-YVP112M4,RC87-YVP132M4,RC87-YVP160M4,RC87-YVP180M4,RC87-YVP200M4,RC87-YVP71M4,RC87-YVP80M4,RC87-YVP90M4,RC87-YVPEJ100M4,RC87-YVPEJ112M4,RC87-YVPEJ132M4,RC87-YVPEJ160M4,RC87-YVPEJ180M4,RC87-YVPEJ200M4,RC87-YVPEJ71M4,RC87-YVPEJ80M4,RC87-YVPEJ90M4,MTD87-Y0.37KW,MTD87-Y0.55KW,MTD87-Y0.75KW,MTD87-Y1.1KW,MTD87-Y1.5KW,MTD87-Y100M4,MTD87-Y112M4,MTD87-Y11KW,MTD87-Y132M4,MTD87-Y15KW,MTD87-Y160M4,MTD87-Y18.5KW,MTD87-Y180M4,MTD87-Y2.2KW,MTD87-Y200M4,MTD87-Y22KW,MTD87-Y30KW,MTD87-Y3KW,MTD87-Y4KW,MTD87-Y5.5KW,MTD87-Y7.5KW,MTD87-Y71M4,MTD87-Y80M4,MTD87-Y90M4,MTD87-YEJ100M4,MTD87-YEJ112M4,MTD87-YEJ132M4,MTD87-YEJ160M4,MTD87-YEJ180M4,MTD87-YEJ200M4,MTD87-YEJ71M4,MTD87-YEJ80M4,MTD87-YEJ90M4,MTD87-YS100M4,MTD87-YS112M4,MTD87-YS132M4,MTD87-YS160M4,MTD87-YS180M4,MTD87-YS200M4,MTD87-YS71M4,MTD87-YS80M4,MTD87-YS90M4,MTD87-YVP100M4,MTD87-YVP112M4,MTD87-YVP132M4,MTD87-YVP160M4,MTD87-YVP180M4,MTD87-YVP200M4,MTD87-YVP71M4,MTD87-YVP80M4,MTD87-YVP90M4,MTD87-YVPEJ100M4,MTD87-YVPEJ112M4,MTD87-YVPEJ132M4,MTD87-YVPEJ160M4,MTD87-YVPEJ180M4,MTD87-YVPEJ200M4,MTD87-YVPEJ71M4,MTD87-YVPEJ80M4,MTD87-YVPEJ90M4,WXR87-WSS0.37KW,WXR87-WSS0.55KW,WXR87-WSS0.75KW,WXR87-WSS1.1KW,WXR87-WSS1.5KW,WXR87-WSS100M4,WXR87-WSS112M4,WXR87-WSS11KW,WXR87-WSS132M4,WXR87-WSS15KW,WXR87-WSS160M4,WXR87-WSS18.5KW,WXR87-WSS180M4,WXR87-WSS2.2KW,WXR87-WSS200M4,WXR87-WSS22KW,WXR87-WSS30KW,WXR87-WSS3KW,WXR87-WSS4KW,WXR87-WSS5.5KW,WXR87-WSS7.5KW,WXR87-WSS71M4,WXR87-WSS80M4,WXR87-WSS90M4,WXR87-WSSB100M4,WXR87-WSSB112M4,WXR87-WSSB132M4,WXR87-WSSB160M4,WXR87-WSSB180M4,WXR87-WSSB200M4,WXR87-WSSB71M4,WXR87-WSSB80M4,WXR87-WSSB90M4,WXR87-WSSVP100M4,WXR87-WSSVP112M4,WXR87-WSSVP132M4,WXR87-WSSVP160M4,WXR87-WSSVP180M4,WXR87-WSSVP200M4,WXR87-WSSVP71M4,WXR87-WSSVP80M4,WXR87-WSSVP90M4,WXR87-WSSVPB100M4,WXR87-WSSVPB112M4,WXR87-WSSVPB132M4,WXR87-WSSVPB160M4,WXR87-WSSVPB180M4,WXR87-WSSVPB200M4,WXR87-WSSVPB71M4,WXR87-WSSVPB80M4,WXR87-WSSVPB90M4。
